| DL-BW 06-165/T (For Universal Use! -Metal Ceiling Speakers) |
 |

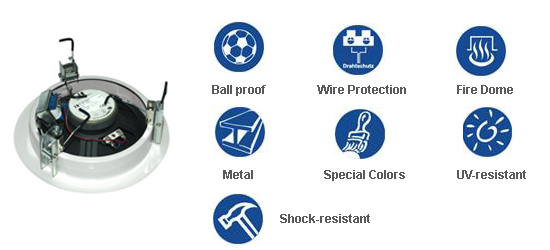

| The modern metal ceiling speaker DL 165 made of powder-coated metal, alternatively in RAL 9010 (white) high-quality 165mm full range speaker for universal use. |
| Features : |
 Spring clamps with cropped leg spring, increased clamp force and shortened tension distance. This allows quick and easy mounting. |
| Plain installation in false ceilings won't cause problems anymore. |
| You can order all ceiling speakers in different RAL-colours at a surcharge. |
| The optional fire dome F165 increases passive security. |
| RoHS Compliant.. |
| Technical Specifications: |
| Technical Specifications |
DL-BW 06 165/T |
| Power |
6 / 3 / 1.5W |
| Frequency Range |
100-16000 Hz |
| SPL 1W / 1m |
97.6dB |
| SPL Pmax / 1m |
105.7dB |
| Dimensions |
220 X 100mm |
| Ceiling Cut-out |
197mm |
| Temperature Range |
-20 0 to +800 C |
| Dispersion Angle (-10dB) |
1800 (H) / 1800 (V) |
| Weight |
1.45 Kg. |
| Mounting |
Snap System |
| Colour |
RAL 9010 |
|
| |
